Product Detail
Model No.:
KS-850
Production Capacity:
20sets/month
Delivery Date:
within 25 days
Use:
Others
Brand Name:
KingSource
Means of Transport:
Ocean
Packing:
20GP
Plastic Type:
PP/PE
Shaft Design:
Single
Film width:
800mm

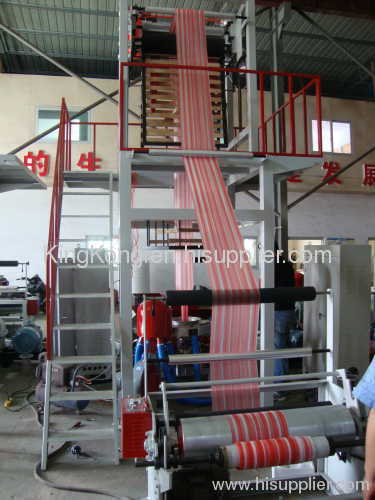

Double color HDPE film blowing machine, High speed film blowing machine, LDPE film blowing machine, shopping bag film blowing machine
Double colors film blowing machine, Two colors strip film blowing machine, Double colors HDPE film blowing machine, Strip shopping bag film blowing machine
Characteristics:
It is used for blowing various low density polyethylene (LDPE) and high density polyethylene(HDPE) color striped plastic film, etc. Which are widely used for packing food, fruit, garments, textile, daily necessities and other civil and industrial products.
The cylinder and the screw extruder are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment. Machine can be freely adjusted within the limits according to the technological requirements of different materials, and has been fitted with a plug-in plate mechanism for making vest bag.
The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.
Main Technical Parameter:
ModelKS-650; KS-850; KS-1100;
Diameter of ScrewÆ 40× 2Æ 45× 2Æ 50× 2
Max. Width of Folded Film(mm)100-600200-800300-1000
Single-face Thickness of Film(mm)0.01-0.100.01-0.100.01-0.10
Max. Extrusion(kg/h)355065
L/D28: 128: 128: 1
Power of Main Motor(kw)1518.522
Power of Traction Motor(kw)0.750.751.1
Heating Power(kw)131521
Overall Dimensions(m)4.8× 1.9× 4.15.5× 2.1× 4.76.5× 2.3× 4.9
Weight(kg)200025003000
With single rewinder, fixed die head. Up-down sets(Height can be adjusted).
1, The main motor is made in Shanghai with CE Certificate, the life will be more 15 years.
2, Electric parts is CHINT, best supplier in China
3, Inverter controlling the motor, which will save power consumption.
4, Traction motor is reduction gearmotor, controlled by inverter
6, Gearbox is casting, hard surface.
7, Barrel and Screw is 38CRMOALA
8, rewinder: Surface friction
9, rewinder motor: Torque motor, controlled by torque controller
Delivery time &Term of payment:
1) Within 25 days from the date of getting receipt of 40%, Balance before delivery.
2) Loading port: Ningbo
3) Destination port: The port at your option.
Quality of Goods:
1)100% brand new, manufactured in the year 2012
2) Origin of Goods: China.
